Topdon

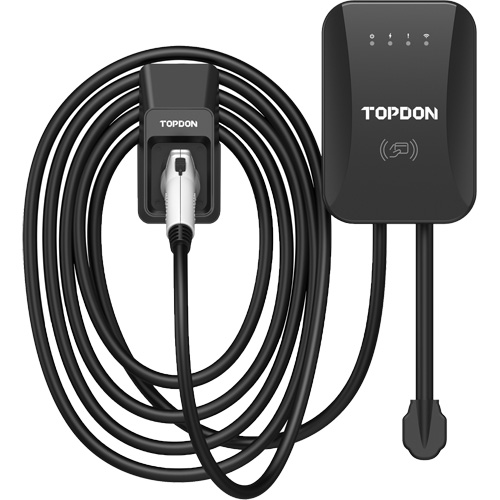

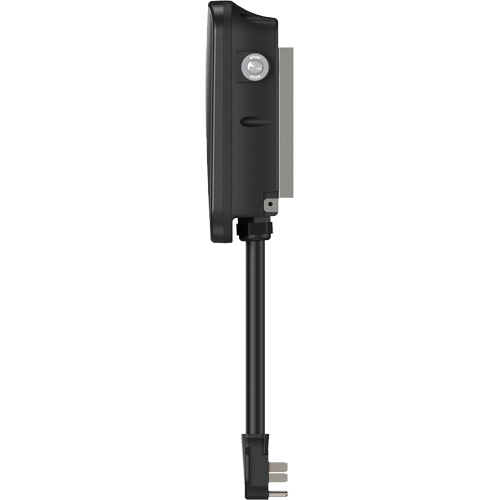

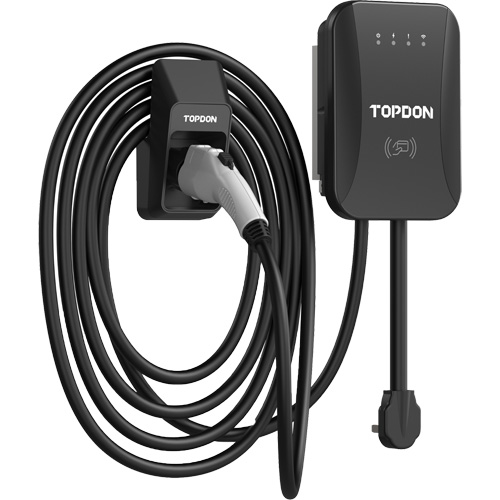

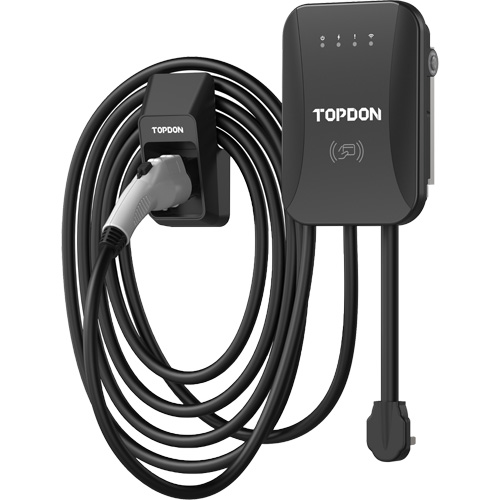

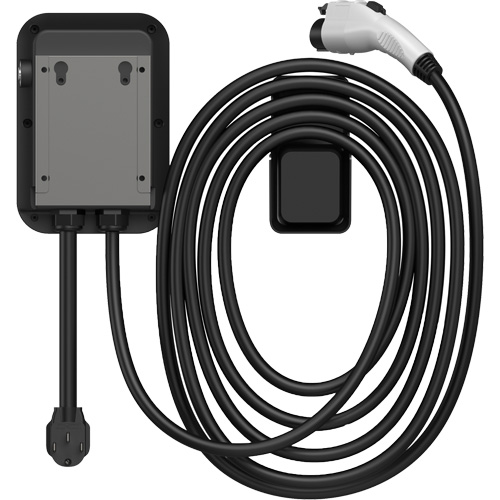

PulseQ AC Home EV Charger with RFID Mode, 40 A, Level 2 AC, Type 1 (SAE J1772) Connector

Model: FLV468

Mfr. No.: EC00175

  • PulseQ AC Home EV Charger with RFID Mode, 40 A, Level 2 AC, Type 1 (SAE J1772) Connector Cam Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • AC EV Charger (14-50P input power cable & 5/7.5m charging cable)
  • Charging Dock
  • Wall-Mounting Accessories
  • User's Manual
  • Quick User Guide
  • Quality Certificate
  • Wall Installation Template
  • M6×63mm Expansion Bolt
  • M5×40mm Expansion Bolt
  • Charging Dock Installation Template
  • IC Card

Manufacturer's Warranty

  • 3 Years

Max Power Output

40 A

Type

Level 2 AC

Connector Type

Type 1 (SAE J1772)

Operating Temperature

-22°F - 131°F (-30°C - 55°C )

Charging Cable Length

24.6'

Dimensions

8.66" W x 12.2" L x 3.74" H

Weight

15.43 lbs.

Charging Modes

App-Controlled, Plug-and-Play, RFID Mode

AC Power Input/Output Voltage

Level 2 AC 208-240V

AC Power Adjustable Current

6-40A

Country Of Origin

China

  • Works with Tesla vehicles using an adapter
  • Ideal for homes with multiple EV brands
  • UL‑listed for safety, meeting U.S. national electrical standards
  • Equipped with a NEMA 14‑50 plug for high‑performance charging
  • Supports scheduling, monitoring, and current adjustment through the PulseQ app
  • App allows charging cost tracking, mileage estimates, notifications, and multi‑user control
  • Plug‑and‑Play mode begins charging automatically when connected
  • Automatically defaults to Plug‑and‑Play mode if Wi‑Fi or app connection is lost
  • Compact, space‑saving design suitable for garages and small installations
  • Multiple mounting options: wall mount, pole mount, and outdoor installation
  • Fast 15‑minute setup when a NEMA 14‑50R outlet and Wi‑Fi are already in place
  • Built with flame‑retardant materials for added durability
  • NEMA Type 4 enclosure: dust‑proof, water‑resistant, and outdoor‑safe
  • Includes a rugged 16.4 ft charging cable rated up to 40A
  • Connector durability rated for up to 10,000 cycles
  • Comprehensive safety protections: under/over‑voltage, overload, over‑temp, short circuit, ground fault, earth leakage (CCID20), lightning protection
