Reed Instruments

110 V Milli-Ohmmeter with ISO Certificate

Model: NJW112

Mfr. No.: K5090-NIST

  • 110 V Milli-Ohmmeter with ISO Certificate Cam Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Measuring Range

0 - 20 ohms/0 - 200 milli ohms/0 - 200 ohms/0 - 2000 milli ohms/0 - 2000 ohms

Sampling Time

2x/second

Range Selection

Manual

Overvoltage Category

Cat. II 230V

Resolution

0.1MΩ, 1MΩ, 10MΩ, 0.1Ω, 1Ω

Accuracy

200MΩ: ±(0.75% rdg. + 4 dgt.), 2000MΩ, 20Ω, 200Ω, 2000Ω: ±(0.75% rdg. + 2 dgt.)

Certification(s)

CE

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Dimensions

6.3 x 4.7 x 3.3" (160 x 120 x 85 mm)

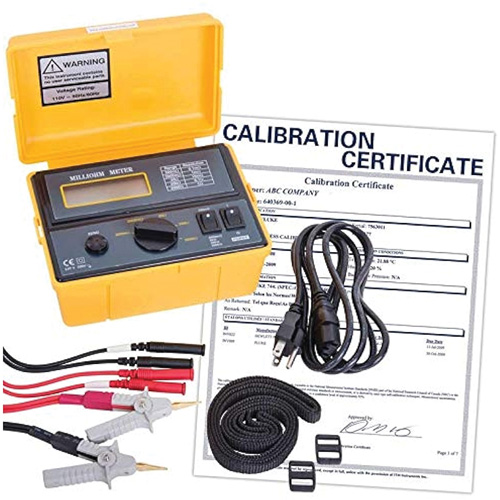

  • Includes: (1) 110V Milli-ohmmeter, (1) ISO certificate with full data & uncertainties, (1) Protective case, (1) Power cord, (1) Shoulder strap, (1) 4-Wire with 2 kelvin clips
  • 4 terminal input for high accuracy of low resistance
  • Large LCD display
  • Zero adjustment dial
  • Built-in overload protection
  • High accuracy, high resolution for field use
  • Features over-range indicator and fuse protection
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
