Mastercool

Turbo/Intake Diagnostic Smoke Machine

Model: FLV258

Mfr. No.: 43060-TB

  • Turbo/Intake Diagnostic Smoke Machine Cam Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

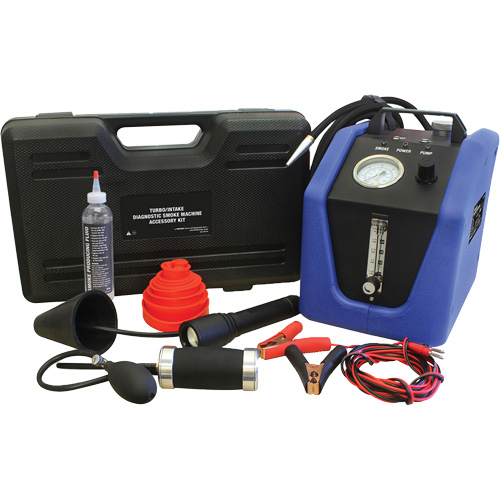

Includes

  • Turbo/Intake Diagnostic Smoke machine
  • Inflatable intake bladder
  • Full set of block off caps
  • Exhaust cone
  • High intensity battery powered smoke illuminating flashlight
  • 8 oz smoke producing fluid

Voltage

12 VDC

Input Pressure

Max 100 psi (7 bar)

Output Pressure

Internal Pump Max 22 psi (150 kPa) / External Pressure Source Max 28 psi (190 kPa)

Safety Pressure Relief

120 (±5) psi

Oil Fill Line Indicator

3.4 oz (100 ml (±10 ml)

Flow Meter

0 – 0.040 in. (0 – 1.0 mm)

Power Consumption

Max 6.5 Amps

Operating Temperature

0°F to 140°F (-17°C to 60°C )

Pressure Supply

Air/Inert gas/Pump

Country Of Origin

China

  • For all turbo, intakes, exhaust, vacuum lines and vacuum components, manifolds, passenger compartment window and sunroof, headlight/tail-light fixtures and much more
  • Not for EVAP testing
  • Compact, heavy-duty design for years of reliable service
  • Multiple options for smoke injection include built-in internal compressor, shop air and inert gases
  • Quick smoke generation
  • Built-in safety pressure relief valve
  • Pressure can be regulated from 0 to 28 PSI
  • Large easy to read pressure decay gauge 0 to 30 PSI
  • Non-toxic and non-corrosive smoke
  • 10’ 12V power cables with durable clamps
  • Heavy-duty 10’ smoke injection hose
  • Velcro strap for hose and power cable storage
