Lincoln Electric

POWER MIG® 360MP Aluminum Front Trigger One-Pak® for Trailer & General Fabrication, 208 V/230 V/460 V/575 V, 1 Ph, 50/60 Hz

Model: TTV787

Mfr. No.: K4784-1

  • POWER MIG® 360MP Aluminum Front Trigger One-Pak® for Trailer & General Fabrication, 208 V/230 V/460 V/575 V, 1 Ph, 50/60 Hz Cam Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

For Use With

  • Automotive, General Fabrication, Heavy Fabrication, Maintenance & Repair, Repair Welding

Includes

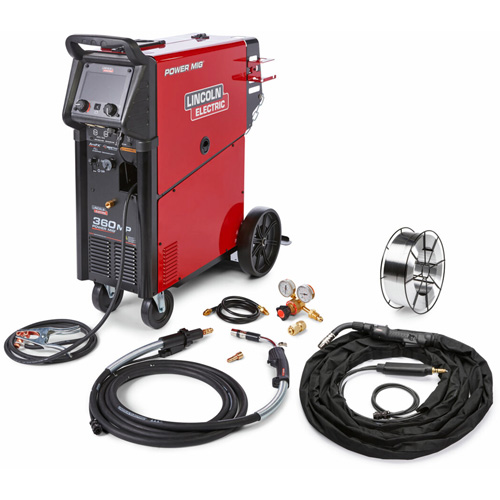

  • (1) POWER MIG 360MP Multi-Process Welder, (1) K2951-2 Magnum® PRO Curve™ 300 Gun 15 ft (4.5 m), (1) K4797-2 Magnum PRO AL Front Trigger Gun 25 ft (7.6 m), (1) ED033916 3/64 in SuperGlaze® 5356 16 lb Spool, (1) KP1695-3/64A Aluminum Drive Roll Kit 3/64 in, (1) K2910-2 Connector Cable 12F to 7M, (1) Drive Rolls 0.035 in (0.9 mm), (1) Drive Rolls 0.045 in (1.2 mm), (1) Wire Guides 0.035 in (0.9 mm), (1) Wire Guides 0.045 in (1.2 mm), (1) Gas Regulator & Hose, (1) Work Clamp & Cable, (1) 230V Input Cord & Plug, (1) 115V AC Auxiliary Power Receptacle, (1) Storage Compartment, POWER MIG® 360MP Multi-Process Welder (K4467-1), 12F To 7M Adapter (K2910-2), Drive Roll Kit 3/64 in (1.2 mm) Aluminum Wire (KP1695-3/64A), Magnum® PRO AL FC 225 Air 12P FT - 25 ft (K4797-2)

Manufacturer's Warranty

  • 3 Years

Voltage Input Power

208 V/230 V/460 V/575 V

Phase Input Power

1 Ph

Hertz Input Power

50/60 Hz

Dimensions (H X W X D)

37.3" x 18" x 40.4" (947.42 mm x 457.2 mm x 1026.16 mm)

Weight

295 lbs. (133.81 kg)

Output Range

5-360 A

Rated Output

320A/30V/60%

  • 7-Inch colour display enhances communication between operator and machine
  • Aluminum pulse process welds 4XXX and 5XXX series aluminum for superior quality welding
  • Multi-process capable welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse® and Power Mode®
  • Pulse-on-Pulse® delivers a stacked dime appearance when welding aluminum
  • Power Mode® maintains a stable, smooth arc for short arc welding on steel
  • Set weld procedures with one control
