Lincoln Electric

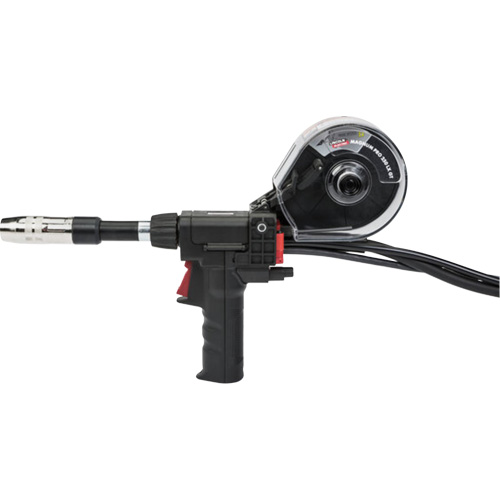

Magnum® PRO GT Spool Gun, 250 Amperage Rating

Model: TTV826

Mfr. No.: K3569-2

  • Magnum® PRO GT Spool Gun, 250 Amperage Rating Cam Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • Spool Gun with 25 ft. Cable
  • 180° 550 Amp Expendable Liner (KP2879-5)
  • Drive Roll - .030-.035/3/64 (Aluminum) (KP2518-2)
  • Magnum® PRO Diffuser - 550A, Thread-On, Aluminum (KP2747-1A)
  • Magnum® PRO Nozzle - 550A, Thread-on, Recess, Aluminum, 5/8 in (15.9 mm) ID (KP2743-1-62RA)
  • Magnum® PRO Insulator - 550A (KP2773-1)
  • Copper Plus® Contact Tip - 550A, Aluminum, Tapered, 3/64 in (1.2 mm) - 10/pack (KP2745-364AT)

Manufacturer's Warranty

  • 1 Year

Amperage Rating

250

Length

25'

Duty Cycle At Rated Amperage (Mixed Gas)

60%

Country Of Origin

United States

  • Large thumbscrew makes fine adjustment of drive roll pressure effortless
  • Setscrew allows for coarser adjustment if needed for steel
  • Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time
  • The built-in gas valve allows gas flow to be controlled at the trigger, making the gun compatible with machines that do not have internal solenoids
  • Adjusts wire speed remotely at the gun with fine resolution, while synergistically adjusting the voltage on the machine
  • This dials in desired welding parameters without the need to travel back to the power source
