Lincoln Electric

Flextec® 350XP Standard Multi-Process Power Source, 380 V/575 V, 3 Ph, 50/60 Hz

Model: TTV750

Mfr. No.: K4272-2

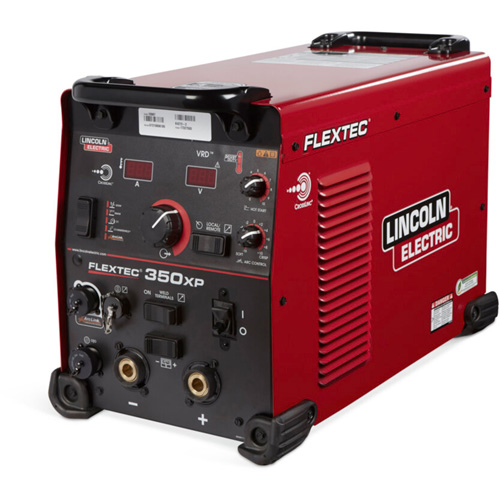

  • Flextec® 350XP Standard Multi-Process Power Source, 380 V/575 V, 3 Ph, 50/60 Hz Cam Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • 8.5 ft (2.6m) Input Power Cord, Flextec® 350X Empty 4-Pack Rack (K3400-2)

Manufacturer's Warranty

  • 3 Years

Voltage Input Power

380 V/575 V

Phase Input Power

3 Ph

Hertz Input Power

50/60 Hz

Dimensions (H X W X D)

17" x 13" x 24" (432 mm x 330 mm x 609 mm)

Weight

82 lbs. (37 kg)

Max. Rating

425 A

Output Range By Mode

5-425

Rated Gouging Carbon Diameter

1/4" (6.5 mm)

Communication Technology

CrossLinc, ArcLink

Wire Feeder Supply Voltage

40 VDC

  • Pulsed MIG modes unlocked when paired with a compatible Arclink capable feeder
  • Features CrossLinc® Technology
  • Streamlined operator panel minimizes setup time
  • Compatible with across-the-arc, CrossLinc™, 14-pin analog and 5-pin digital wire feeders
  • Components designed to run cool for long life in high temperature environments
  • Supports 14-pin and 5-pin (ArcLink) wire feeders as well as CrossLinc and Across-the-Arc
